1000 Top Hung Door Magnetic External Notice Board With Post Kit



1000 Top Hung Door Magnetic External Notice Board With Post Kit

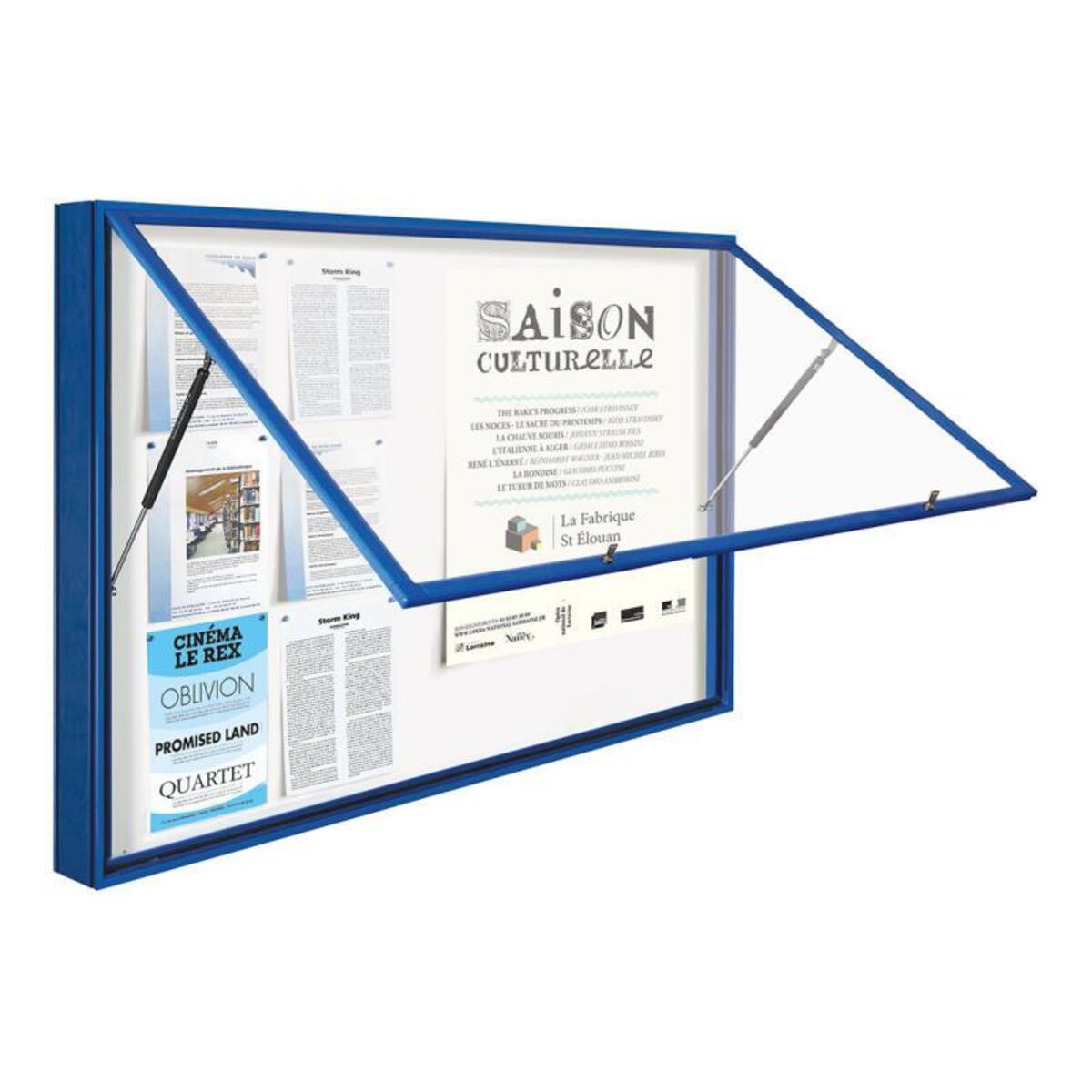

With a single top hung door secured by gas struts, this professional frame comes with a choice of six frame finishes and sunken or surface level posts.

  • 75mm depth anodised aluminium or painted frame
  • Choice of sunken root fixed posts, or bolt down surface posts
  • Magnetic galvanized steel backing board with a white lacquered finish
  • Waterproof elastomer seals for complete weatherproofing
  • Warp-proof and wear-resistant hinge
  • Vandal-resistant shatterproof glazing with replaceable door in case of major vandalism
  • Available with an LED light kit for increased nighttime visibility
  • Magnets included (1 per A4 sheet*)
  • Made To Order - Turnaround Time 10-12 Business Days (Anodised) / 6-8 Weeks (Painted)

Supplied with a durable galvanised steel magnetic backing board and tamperproof locks, our 1000 Magnetic Notice Board is perfect for creating versatile large format displays. With security featured such as shatterproof glazing, fully replaceable doors and wear-resistant hinges, this board can be mounted in any location. For a display that is visible even at night time, the addition of our LED light kit is the perfect solution.

Available with a choice of anodised aluminium, or painted frame finish. This notice board also comes with a range of features to protect your graphics from poor weather, such as waterproof elastomer seals and anti-condensation vents.

This stylish external notice board features elastomer seal seals and anti-condensation vents, meaning your display remains protected from rain and wind. With a choice of sunken or surface-level posts, this frame also comes with the option to include LED lights for nighttime illumination.

Ideal for post-mounted use outside schools, churches, offices, community halls, and restaurants, our 1000 Magnetic Notice Board comes with a single reversible door and anti-condensation vents to protect your graphics from the elements.

Display: Single Sided

Glazing: 4mm anti-vandal Plexichoc™

Opening System: Top Hung Door Opening on Gas Struts

Locking System: 2 Tamperproof safety lock. Supplied with 2 keys.

Waterproofing:  Elastomer Seal

Interior Finish:  Galvanised steel sheet lacquered in white on the interior back panel, light grey (RAL 7032) on the exterior back panel.

Frame Finish:  Silver Anodised Aluminium or Painted (see available RAL colours)

Post Kit (Included) Options: Round 76mm Post Kit: 2 round 76mm posts in silver anodised aluminium or painted to match your chosen colour selection, supplied with black lacquered steel tops. Delivered with 4 dove-tailed cast aluminium clamps for easy and rapid assembly without drilling. Adjustable notice board height.  Concreted directly into the ground only (concrete mix not included).

Quatro Post Kit: 2 oblong posts with 80 x 125 mm cross-section, in silver anodised aluminium or painted to match your chosen colour selection with black lacquered steel tops. Delivered with 4 dove-tailed cast aluminium clamps for easy and rapid assembly without drilling. Adjustable notice board height. Install by concreting directly into the ground (sunken - root mounted) or on base plates (mounting brackets included). (Concrete mix not included).

Included:  Magnets Included (1 per A4, limit of 20 per display case).

Optional Lighting Kit: PLEASE NOTE Lighting Unit will not be supplied attached to the board. To install the kit, the customer is obliged to drill into the notice board to pass the wires, however,  do not do so on top of the notice board. Once the wires are passed, use silicone both inside and out of the hole to make a waterproof seal. Do not put the transformer inside the case, due to heat this may cause condensation. Please contact us for further information if required.

LED LIGHTING KIT LED

Lighting Kits make it easier to read the documents on display.

  • High-quality white light: 120 lumens per watt, IP20 LEDs
  • Transformers: IP67
  • Life span: 75,000 hours of operation
  • Power consumption: 12.5 watts per linear metre
  • Caution: electrical connections must be made by a professional and comply with all applicable regulations.

Wiring recommendations (maximum distance per linear metre of LED strip):

  • 5 m with 2 x 0.75 mm cable
  • 10 m with 2 x 1.5 mm cable
  • 15 m with 2 x 2.5 mm cable

Note: our kits consist of one or more LED strips, depending on the size of the notice board, and a transformer.

PRODUCT WARRANTY

Our products are essential elements of urban life. Longevity, durability and your legitimate demand for sustainability require a high level of quality. Cutting, bending, notching, welding, glueing, grinding, sanding, anti-corrosion treatment, finish paint, and packaging: the greatest professionalism is used throughout the manufacturing process. Our approach is to offer a warranty on this product according to the following conditions:

  • Weld Strength - 5-Year Warranty
  • Quality of paint finish & UV resistance - 5-Year Warranty
  • Waterproofness of outdoor noticeboards - 5-Year Warranty
  • Resistance of recycled plastic - 5-Year Warranty (excluding deformation and discolouration)
  • High-density polyethylene - 5-Year Warranty (excluding discolouration)
  • Quality of paints/stains on wood components and their resistance to UV - 1-Year Warranty (untreated wood components are not guaranteed)

Outside the areas specified above, the contractual guarantee is limited to one year.

Product Lead Time – Please be advised the lead time detailed above is the current working standard for this product. Your despatch and delivery dates will be detailed in your order confirmation sent via email from our Sales Team once your order has been received. For any product requiring artwork completion, the lead time starts from the next business day after you have approved and signed off your digital artwork proof. If we cannot fulfil your order within the detailed lead time, you will be contacted immediately about your order.

Not sure?
Have Questions?

Get in touch

Size

Display Area (h x w)

Overall Size (h x w x d)

Weight     Light Kit Power

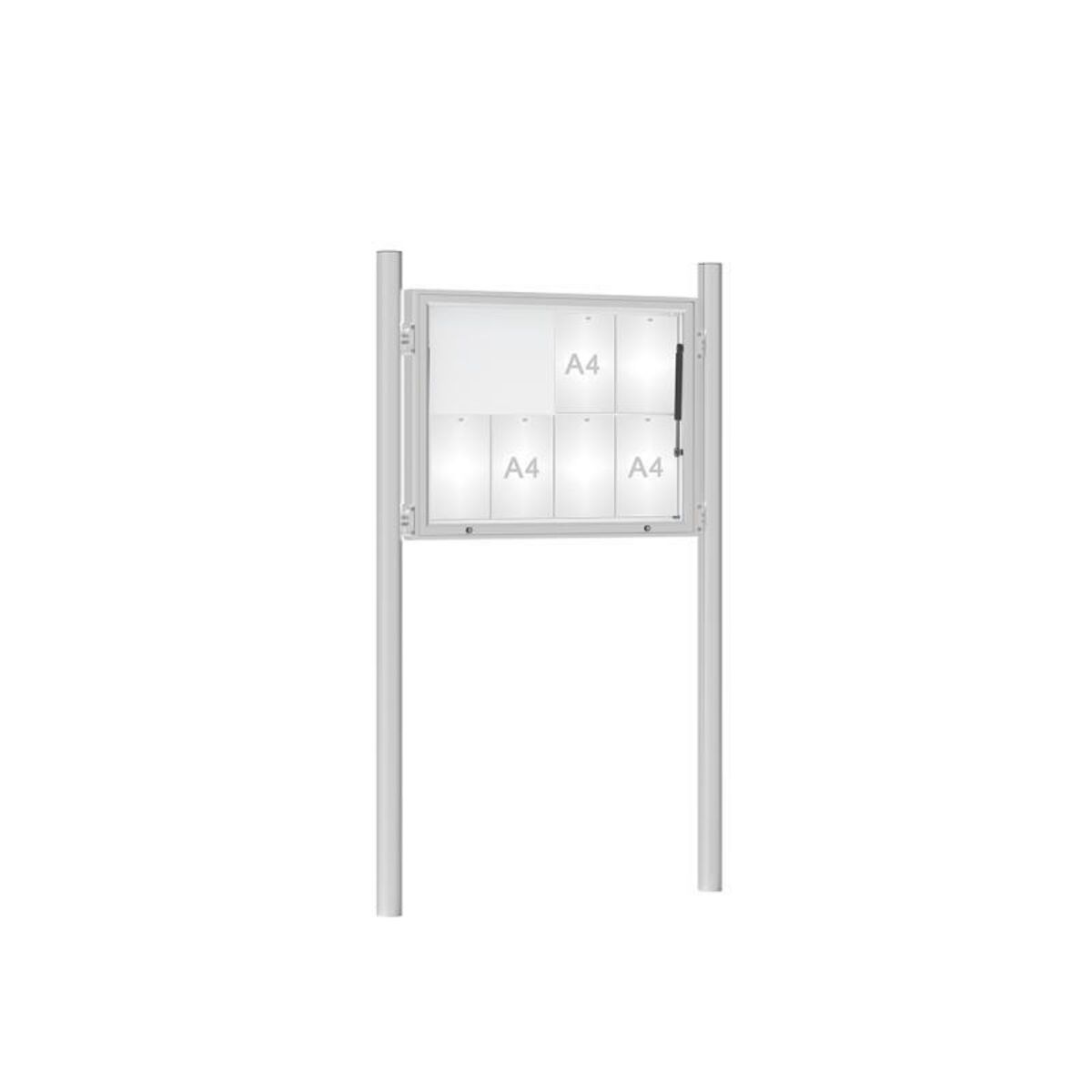

8 x A4 651 x 901mm 750 x 1000 x 75mm 18 kg 18w

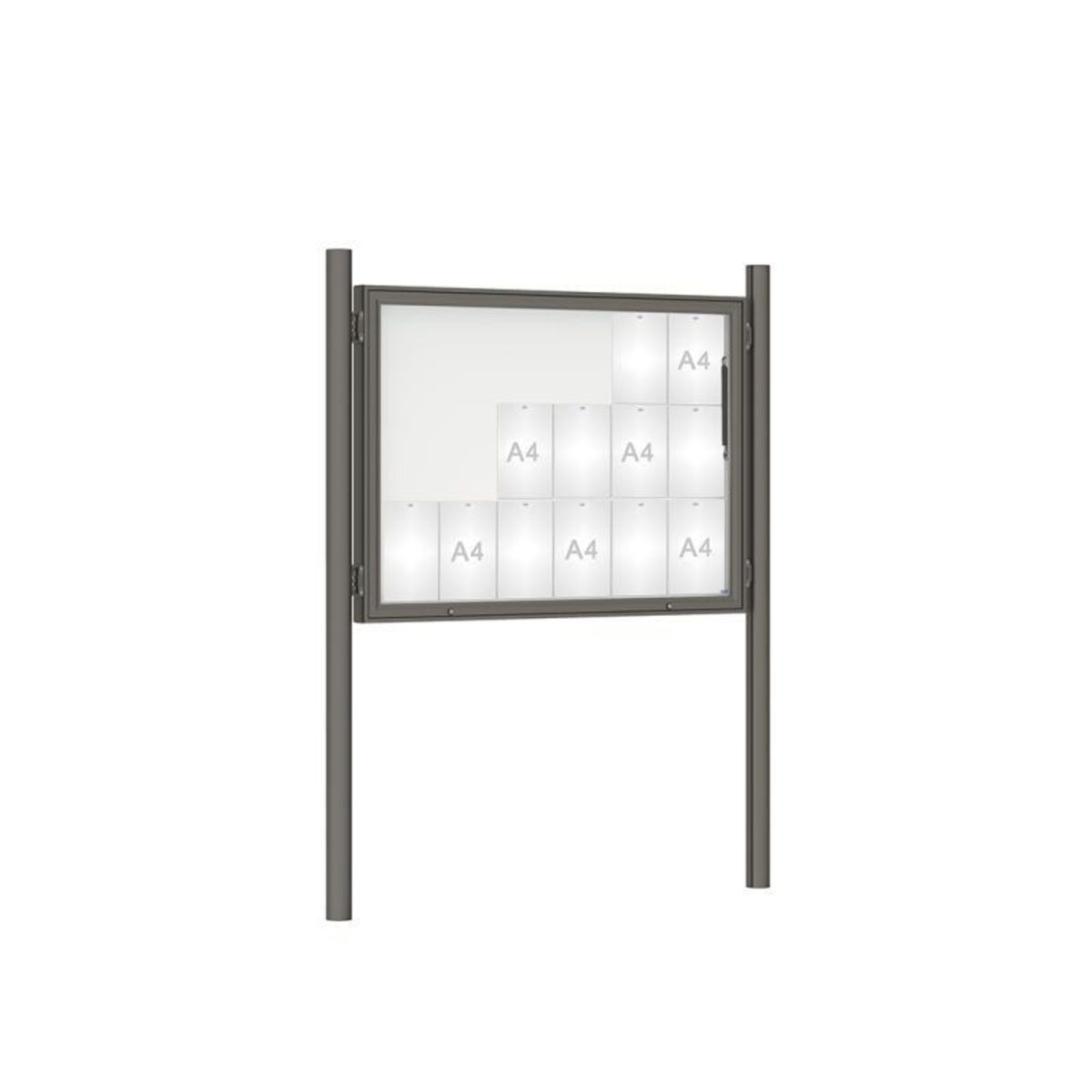

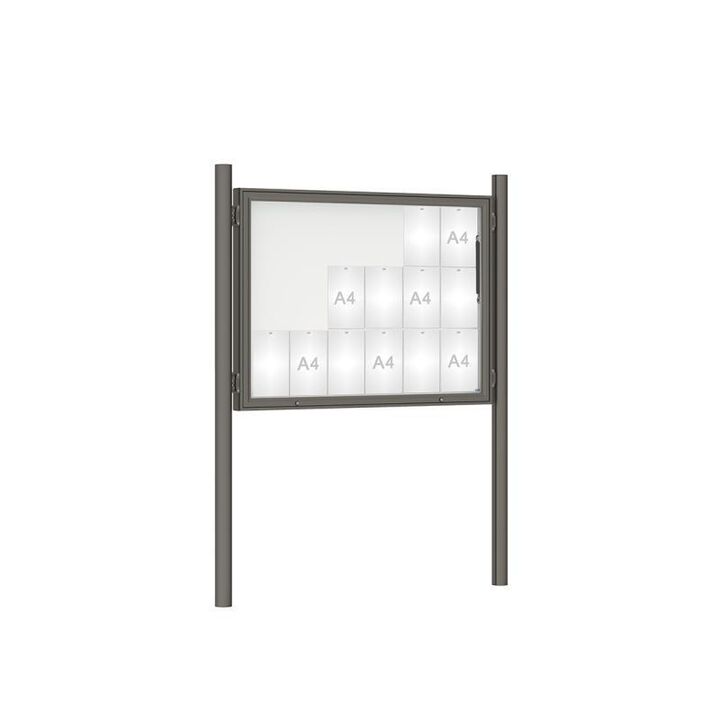

18 x A4 889 x 1239mm 1000 x 1350 x 75mm 31 kg 18w

24 x A4

889 x 1489mm 1000 x 1600 x 75mm 42 kg 30w

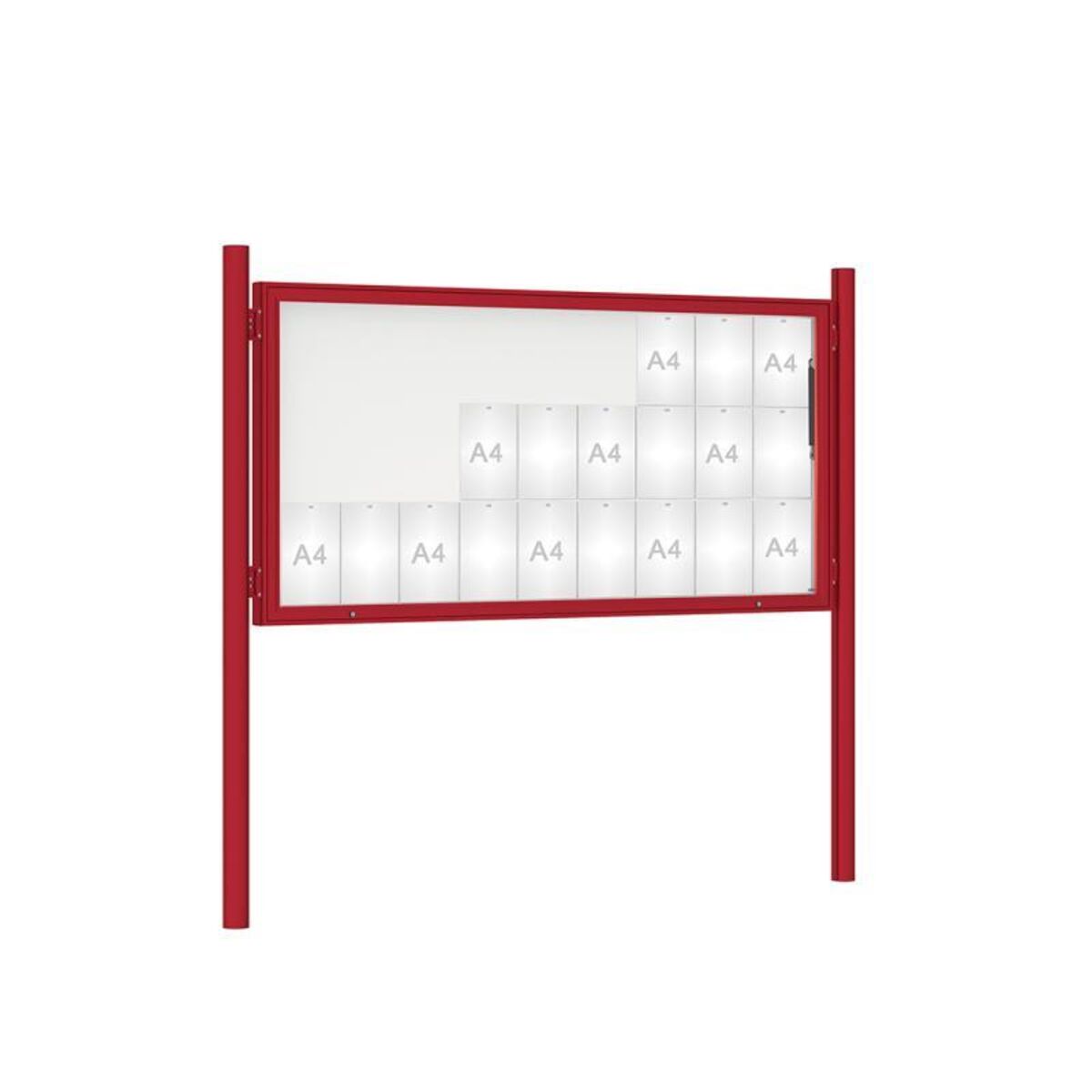

27 x A4

889 x 1899mm 1000 x 2010 x 75mm 79 kg 30w

Please contact us for information on alternative print options.

Further Product Information

Post Kit Post Type Post Size Post Length
Round ø76mm Post Kit Concrete Fix 76mm 2475mm
Quatro Post Kit Concrete Fix 80 x 125mm 2475mm
Quatro Post Kit Base Plates 80 x 125mm 2058mm
