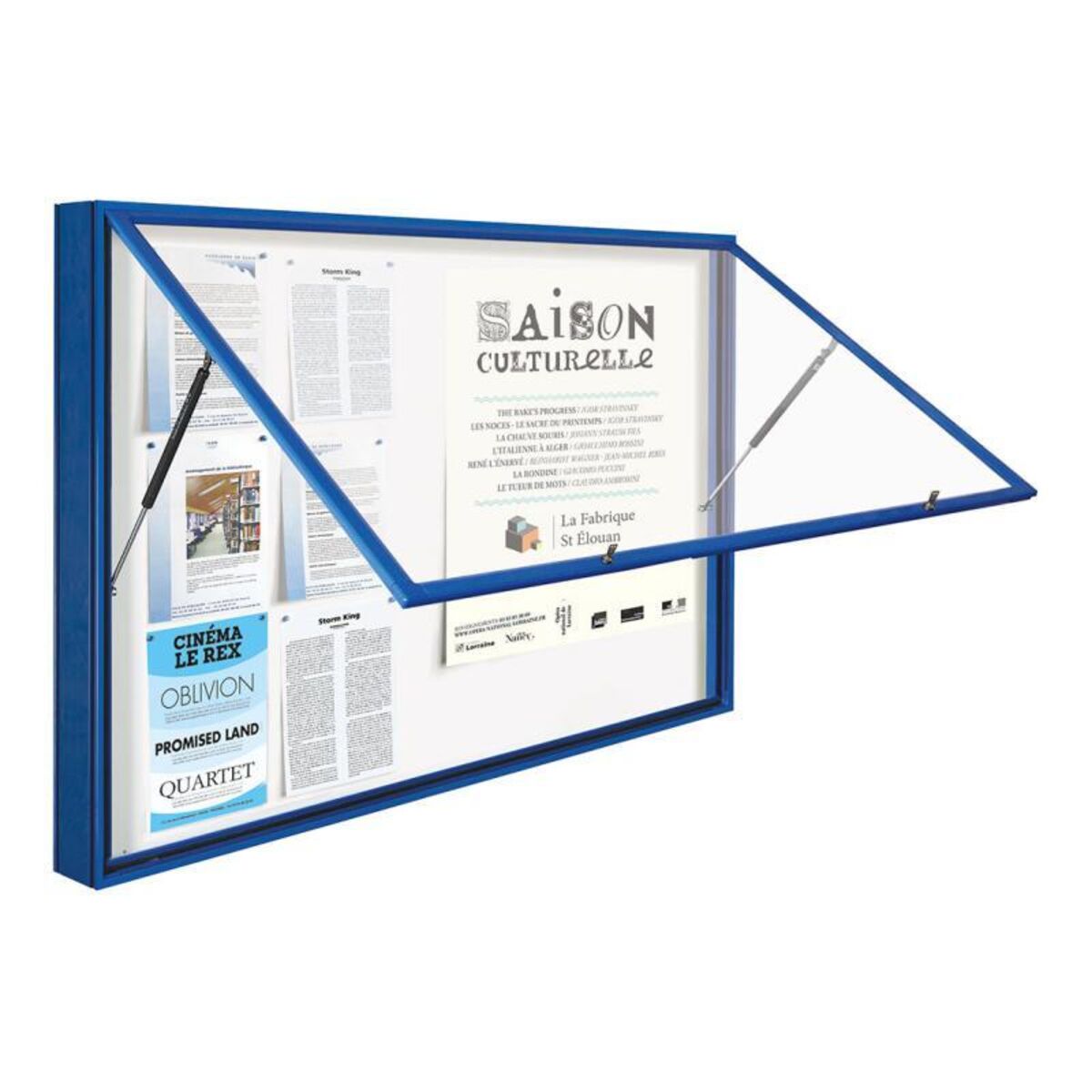

This sturdy external notice board features a large format display and a singular top hung door supported by gas struts. This board is also available with a single hinged door or a double hinged doors.
Perfect for use outside of schools, churches, community halls and businesses, our Top Hung 1000 Magnetic External Notice Board features tamperproof locks, shatterproof glazing and replaceable doors for ultimate protection from vandalism. Meticulously designed with anti-condensation vents and laser-cut mitres for a perfect fit, this board is available in four large-format sizes with a choice of aluminium or vibrant painted frame.
With a heavy-duty, deep profile frame, this board can be used with magnets to create versatile large-format information displays. Available with an internal LED light kit and a large display window, you can ensure your information and graphics are always visible even during the darker winter months.
Display: Single Sided
Glazing: 4mm anti-vandal Plexichoc™
Opening System: Top Hung Door on Gas Struts
Locking System: 2 Tamperproof safety locks. Supplied with 2 keys.
Waterproofing: Elastomer Seal
Interior Finish: Galvanised steel sheet lacquered in white on the interior back panel, light grey (RAL 7032) on the exterior back panel.
Frame Finish: Silver Anodised Aluminium or Painted (see available RAL colours)
Installation: Made for attachment to walls. If looking to attach to wood or fence, please contact us for a quote including a weather-protective backing board. Post Mounted Options Available.
Included: Magnets Included (1 per A4, limit of 20 per display case).
Optional Lighting Kit: PLEASE NOTE Lighting Unit will not be supplied attached to the board. To install the kit, the customer is obliged to drill into the notice board to pass the wires, however, do not do so on top of the notice board. Once the wires are passed, use silicone both inside and out of the hole to make a waterproof seal. Do not put the transformer inside the case, due to heat this may cause condensation. Please contact us for further information if required.
LED LIGHTING KIT LED
Lighting Kits make it easier to read the documents on display.
Wiring recommendations (maximum distance per linear metre of LED strip):
Note: our kits consist of one or more LED strips, depending on the size of the notice board, and a transformer.
PRODUCT WARRANTY
Our products are essential elements of urban life. Longevity, durability and your legitimate demand for sustainability require a high level of quality. Cutting, bending, notching, welding, glueing, grinding, sanding, anti-corrosion treatment, finish paint, and packaging: the greatest professionalism is used throughout the manufacturing process. Our approach is to offer a warranty on this product according to the following conditions:
Outside the areas specified above, the contractual guarantee is limited to one year.
Product Lead Time – Please be advised the lead time detailed above is the current working standard for this product. Your despatch and delivery dates will be detailed in your order confirmation sent via email from our Sales Team once your order has been received. For any product requiring artwork completion, the lead time starts from the next business day after you have approved and signed off your digital artwork proof. If we cannot fulfil your order within the detailed lead time, you will be contacted immediately about your order.
Not sure?
Have Questions?
Size |
Display Area (h x w) |
Overall Size (h x w x d) | Weight | Light Kit Power |
---|---|---|---|---|
8 x A4 | 651 x 901mm | 750 x 1000 x 75mm | 18 kg | 18w |
18 x A4 | 889 x 1239mm | 1000 x 1350 x 75mm | 31 kg | 18w |
21 x A4 |
889 x 1489mm | 1000 x 1600 x 75mm | 42 kg | 30w |
27 x A4 |
889 x 1899mm | 1000 x 2010 x 75mm | 79 kg | 30w |
Please contact us for information on alternative print options.
