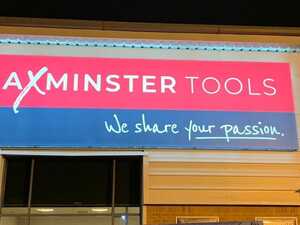

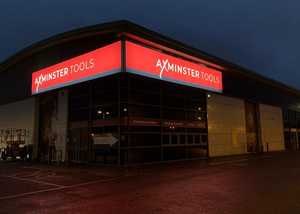

Illuminated Flex Face Axminster Tools.jpg

Illuminated Flex Face Signage - Banner being installed into tray.jpg

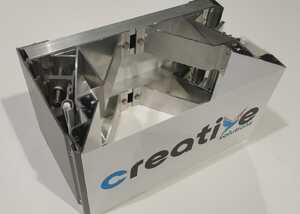

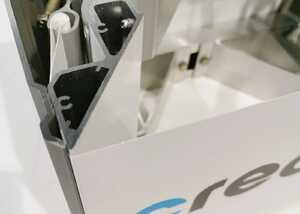

Illuminated Light-Up Signage Graphic Tensioning System Close Up.jpg

Illuminated Light-Up Signage with Full Colour Printed Skin.jpg

Illuminated Signage Back and Side View.jpg

Flex Face Signage

Name: Flex Face Signage
Brand: Creative Solutions Direct
SKU: 72499
Price: 1142.00 GBP
Availability: InStock

Back to Illuminated Signs

Lightbox signage is a fantastic way to increase brand visibility both day and night. Often favoured by retail parks and industrial estates, illuminated flex face signs are a simple, yet high-impact option for outdoor signs.

Need it faster?

Click for more info

Seen it cheaper?

Click for more info

24/7 illuminated brand visibility
Tensioned, wrinkle-free seamless skins every time, with no visible joins
High-grade aluminium tray and wall mounting bars
No visible fixings
Ideal for large retail park signs, gym signs, hotel signage and much more
Your design is the limit! Incredibly versatile with near unlimited options
Robust and weatherproof
Installation Service Available
Custom Sizes Available

The perfect showpiece and innovative signage solution, our Illuminated Flex Face Signs are the only full perimeter tensioning, flexible-faced system you need. The Flex Face refers to the back lit fully printed fabric graphic, which is tensioned from the front and allows up to 50mm of adjustment. The Flex is a robust system that guarantees wrinkle-free skins every time. The system incorporates three different robust support sections, each of which is determined depending on the height of the box required to eliminate any bowing of the structure when under maximum tension.

We printed your design, branding, logo or any artwork onto an incredible strong and heat resistant PVC which is lacquered on both sides of ultimate protection. As it is a full perimeter tensioning system, it is guaranteed to have no blowouts, making it perfect for windy locations, as well as dark evenings for full 24/7 visibility. It is regularly used airside at airports around the UK, Leisure Centres and Gyms, Retail Parks, Hotels, late opening businesses and those wanting to stand out from the crowd. Better still, this superior system is comparable in price to the alternatives on the market, meaning it should be top of your list for the value it provides. We have endeavoured to source the best raw material suppliers and print media to make this both simple to fabricate and easy to install.

SIZING AND SECTIONS

More sizes are available, POA. Please get in touch for your bespoke signage needs and we can walk you easily through the process.

Sizing:

Smallest Size: (W) 1000 x (H) 1000 x (D) 200mm

Largest Size: No Limit! Please contact us for a bespoke quote if you need a size larger than (W) 10000 x (H) 2000 x (D) 200mm

Sections:

Your Illuminated Tray and Back Lit Printed Skin will be cut into vertical sections to allow for ease of installation of both parts. The Aluminium Tray can be bolted to each other, and to the wall mounting bars, and the skin will be seamlessly joined and adhered together to allow for a seamless finish no matter how many sections are needed.

FEATURES & USAGE

Ideal for Backlighting

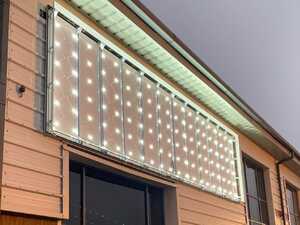

At 200mm in depth, the Illuminated Flex Face is ideal for backlighting with LEDs. The printed skin has welded or industrially stitched loops on all four edges enabling a rod to slide in and the tensioning bar slid over. Once the rods are in place, the skin is hooked into the box and tensioned around the perimeter using a power drill. This makes the fitting process much less labour intensive than other systems on the market.

LED Lighting Features: Super Orbis Gen 3

IP67 rated
5 year warranty
700mA Constant Current
2.05W per module
311 Lumens per module
One LG3535 LED
Fire rated and suitable for Airport LUL Sect 12

Not sure?
Have Questions?

Get in touch

Size (w x h x d)	No. of Sections	Back Lit Skin	Frame	Fixings
1000 x 1000 x 200mm	1 Section	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
1500 x 1000 x 200mm	1 Section	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
2000 x 1000 x 200mm	1 Section	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
2000 x 1500 x 200mm	1 Section	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
3000 x 1000 x 200mm	1 Section	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
3000 x 1500 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full Length Aluminium Wall Mounting Rails
3000 x 2000 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
4000 x 1000 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
4000 x 1500 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
4000 x 2000 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
5000 x 1000 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
5000 x 1500 x 200mm	2 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails
5000 x 2000 x 200mm	3 Sections	Full Colour Printed	RAL Colour Painted Finish	2 x Full-Length Aluminium Wall Mounting Rails

Box Width	Number of Fabric Tension Supports (Included)
Up to 1000mm	2
1000-2250mm	3
2250-3000mm	4
3000-3500mm	5
3500-4000mm	6

Please contact us for information on any part of the sign if required.

Artwork and Design

Whether you’re a novice or a professional when it comes to artwork, we’re able to give you guidance or provide artwork templates for you to make sure your product is print perfect.

Download the PDF template that matches your product selection.
Upload your artwork here, or send it via email, or WeTransfer to our team.
Our team will confirm they’ve received your files, and let you know the next steps.

For further information, please read our Artwork Preparation guide, or contact us here with your artwork questions. Alternatively, give us a call on 01297 630130.

Need help with your Illuminated Signs - Flex Face design?

Why not use our in-house Graphic Design Team to help you make the most out of your Illuminated Signs - Flex Face?

Our designers will work with you to create a professional design to your exact specifications. You can be as involved in the design process as you want to be, either working side by side with our designers or giving them your design brief. We will provide you with an artwork proof for you to approve and will never send your artwork to print without your final sign-off.

Unlike some other companies, we want to offer value for money, so we ensure that you are only charged for the actual time taken to create your design (minimum 15-minute intervals). Formatting a quick layout or checking over print-ready files may be free of charge. If more work is needed, we will contact you to discuss this.
