Stand-Off Sign Fixings
Back to Signage FixingsSuperb-looking fixings to really set your printed panel off. Add an architectural finish to any wall-mounted sign panel.
1 Reviews
easy to fit
- Sarah Rose
- Concealed Mounting Method For A Clean Aesthetic
- Made From 321 Grade Stainless Steel
- Holds Sign Panel Thicknesses 2mm to 12mm
- Eliminates Condensation & Dirt Build-Up Behind Signs
- Can Be Used On Uneven Wall Surfaces
- Supplied In Pairs Or Bulk Packs
- Great Range Of Finishes
- More Sizes & Finishes Available On Request
- Fast Turnaround Times: 1-3 Days

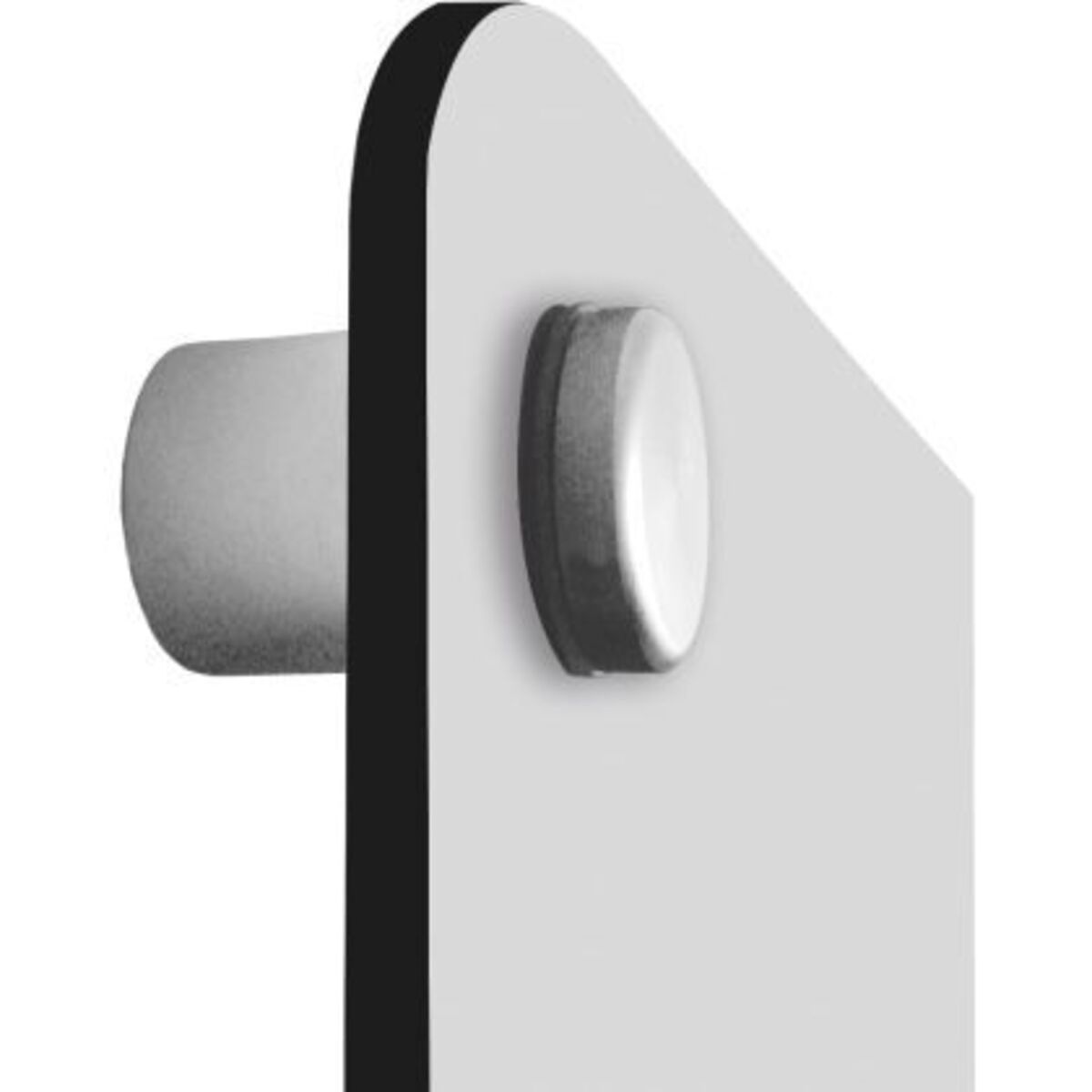

Our Stand-Off Sign Fixings are expertly designed to provide an attractive stand-off feature for any sign panel material while accommodating uneven wall surfaces, including textured or rendered brick and stone.
The fixings allow air to circulate freely across both the front and rear of the sign panel, preventing condensation or dirt buildup behind the sign, which is essential for maintaining clarity, especially with transparent materials. With a concealed mounting method, these fixings also serve as an effective tamper deterrent, keeping screw heads out of sight.
They hold sign panels with thicknesses ranging from 2mm to 12mm and are supplied in pairs, and carefully packaged in protective polythene enclosures.
Please note: Screws and wall plugs are not included, as the appropriate fixings should be chosen based on the specific surface.
Made from 321 Grade Stainless Steel, these stand-offs are built for long-lasting performance, even in outdoor environments.
Product Lead Time – Please be advised the lead time detailed above is the current working standard for this product. Your despatch and delivery dates will be detailed in your order confirmation sent via email from our Sales Team once your order has been received. For any product requiring artwork completion, the lead time starts from the next business day after you have approved and signed off your digital artwork proof. If we cannot fulfil your order within the detailed lead time, you will be contacted immediately about your order.
Not sure?
Have Questions?
13mm Diameter
|
Finish |
Overall Dimensions |
Panel Thickness Range |
|---|---|---|

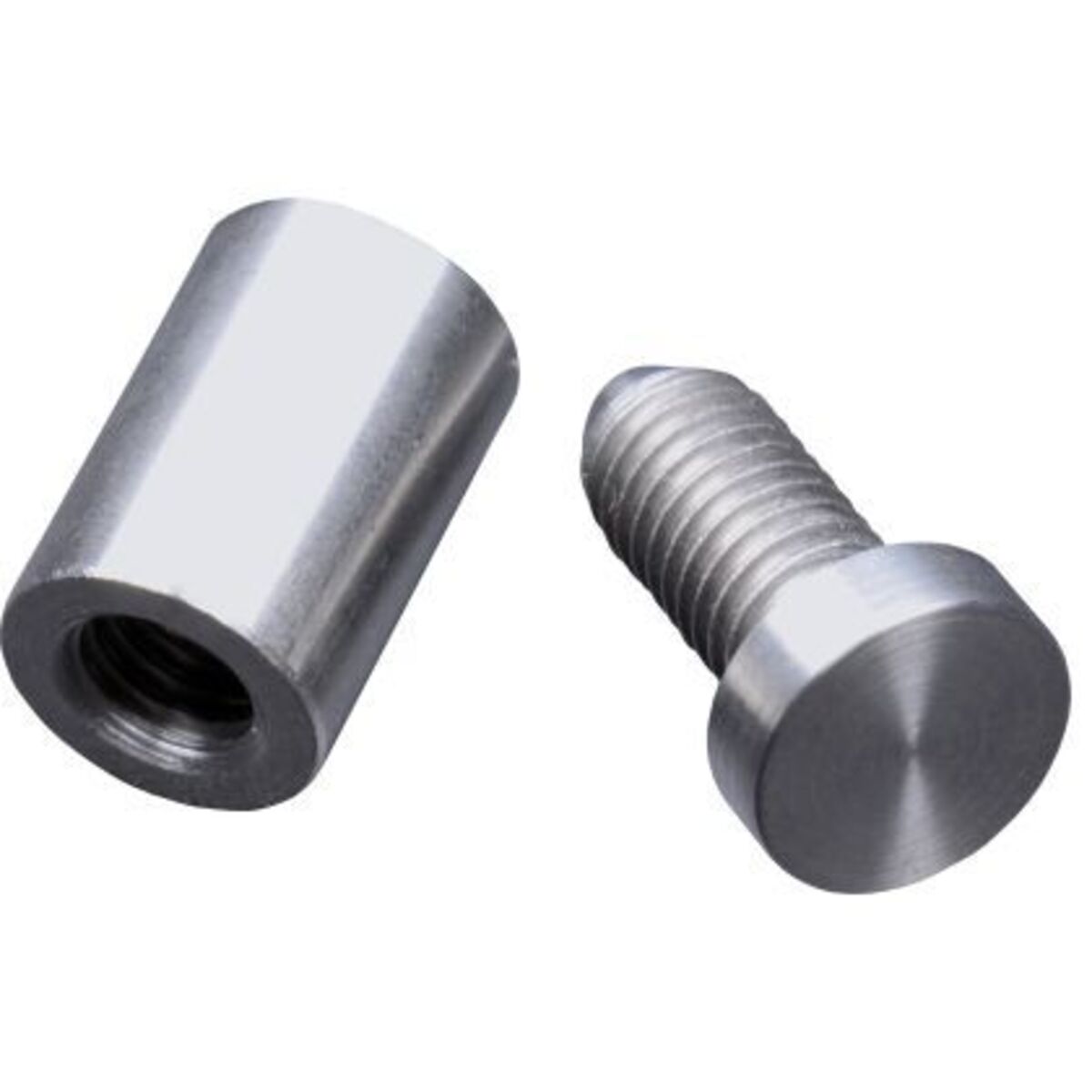

| Stainless Steel Self Colour | 13 x 19mm | 2mm - 10mm |

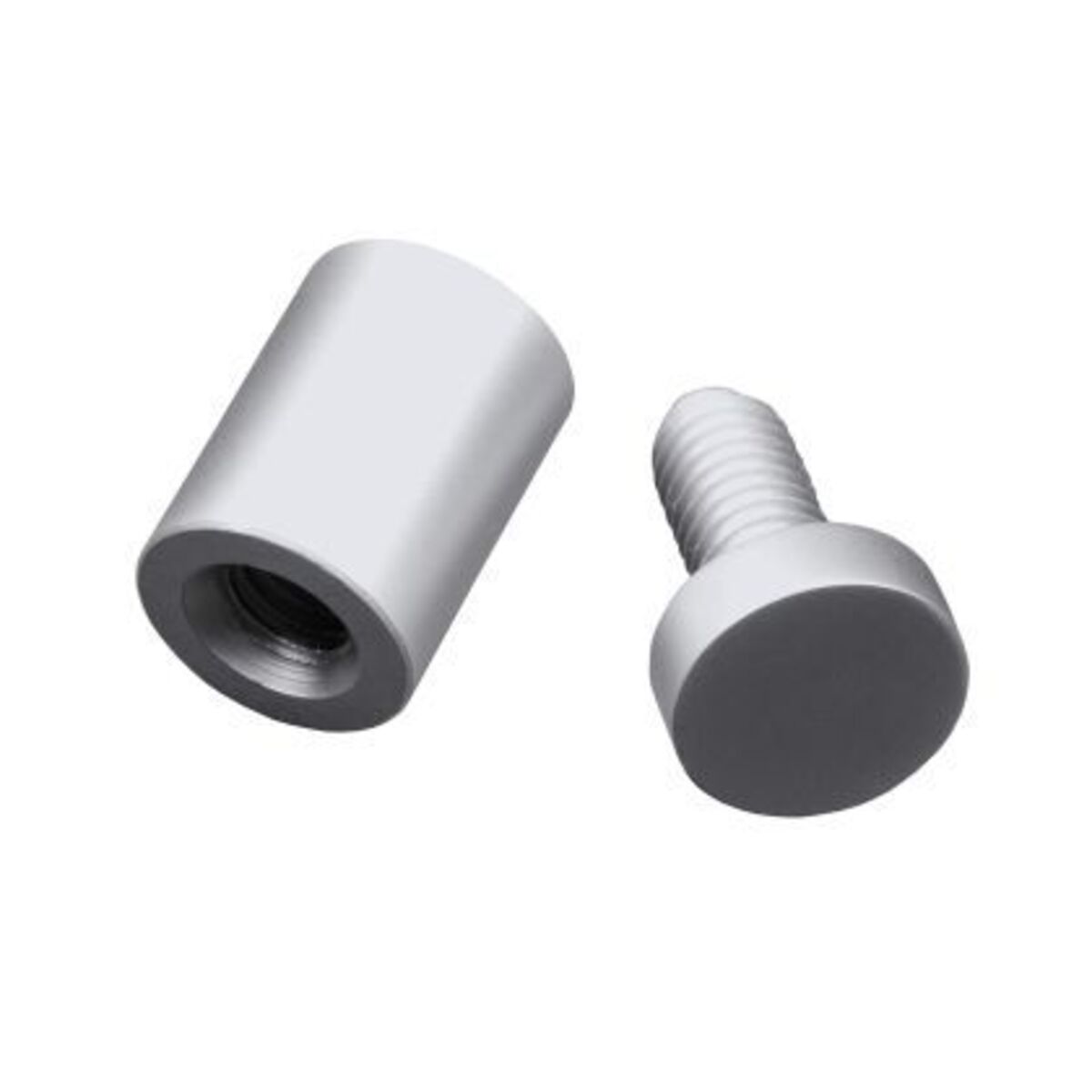

| Aluminium Satin Silver | 13 x 19mm | 2mm - 10mm |

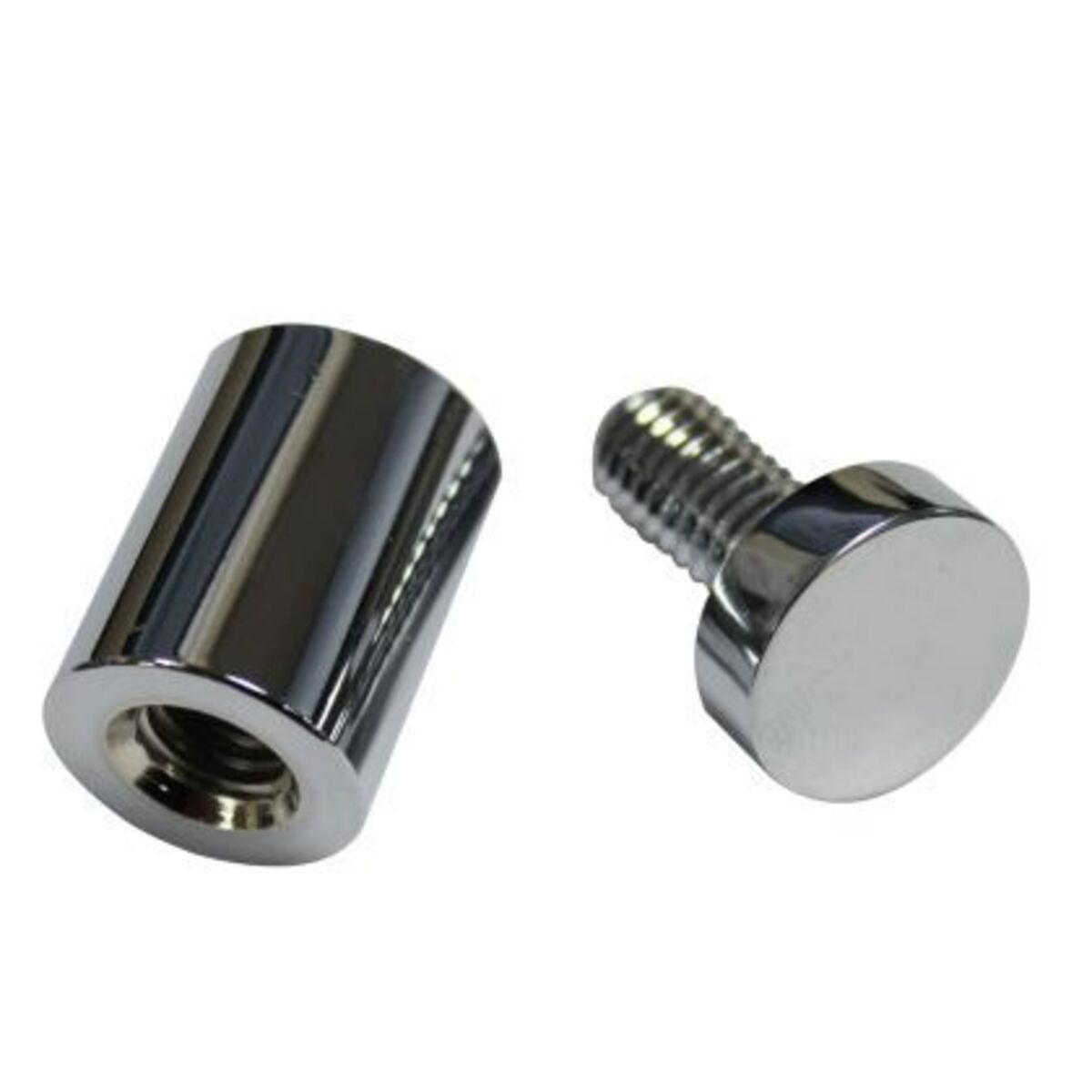

| Aluminium Chrome Plated | 13 x 19mm | 2mm - 10mm |

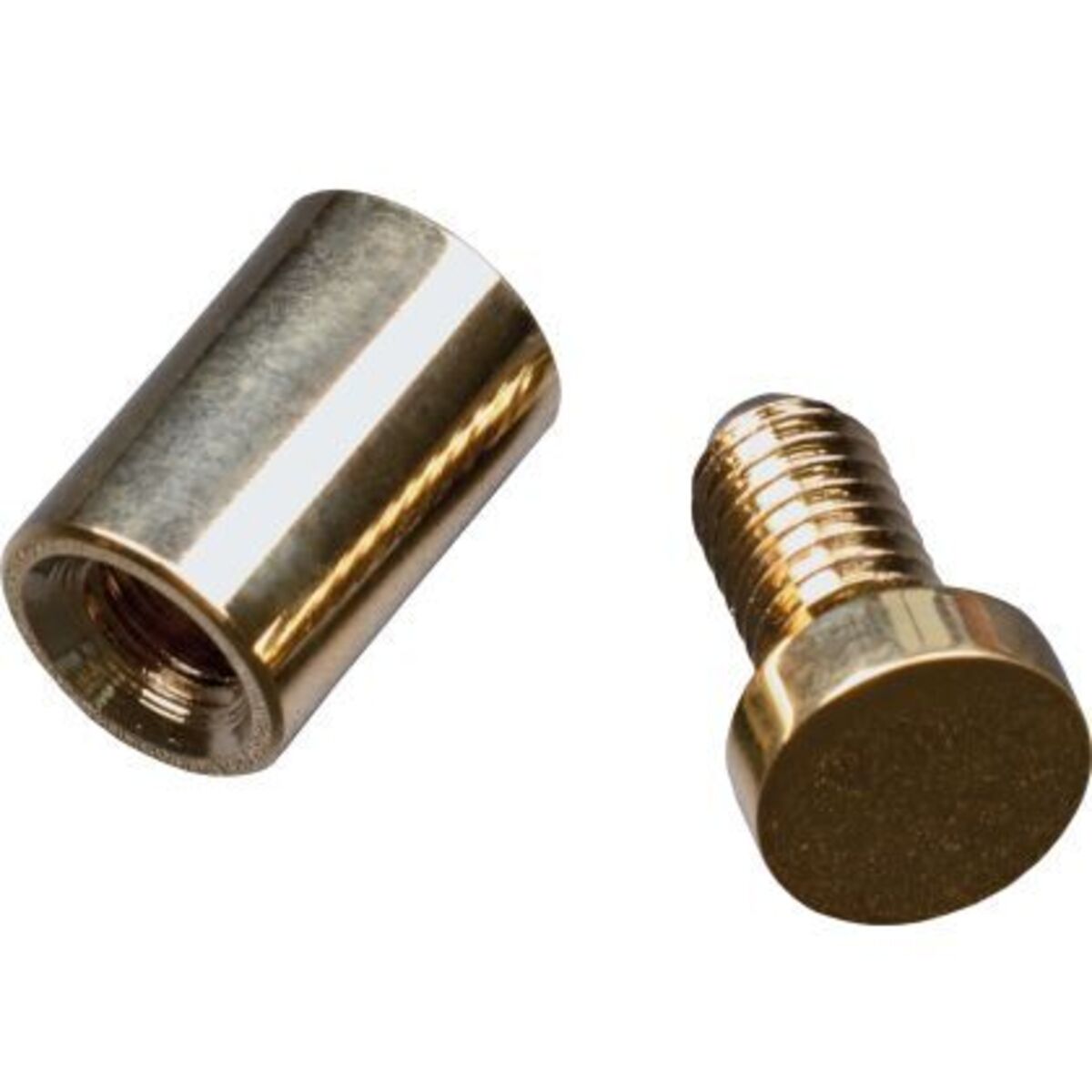

| Brass Plated Gold | 13 x 19mm | 2mm - 10mm |
19mm Diameter
|
Finish |
Overall Dimensions |
Panel Thickness Range |
|---|---|---|
| Stainless Steel Self Colour | 19 x 25mm | 2mm - 12mm |
| Aluminium Satin Silver | 19 x 25mm | 2mm - 12mm |
| Aluminium Chrome Plated | 19 x 25mm | 2mm - 12mm |
| Brass Plated Gold | 19 x 25mm | 2mm - 12mm |
Screw Selection Guide
|
Stand-Off Pillar Size |
Max. Screw Head Dia. |
Max. Screw Thread Dia. |
Hole Size in Sign Panel |
|---|---|---|---|
| 13mm Diameter | 6.6mm | No. 6 (3.5mm) | 8mm Required |
| 19mm Diameter | 8.0mm | No. 8 (4.2mm) | 10mm Required |

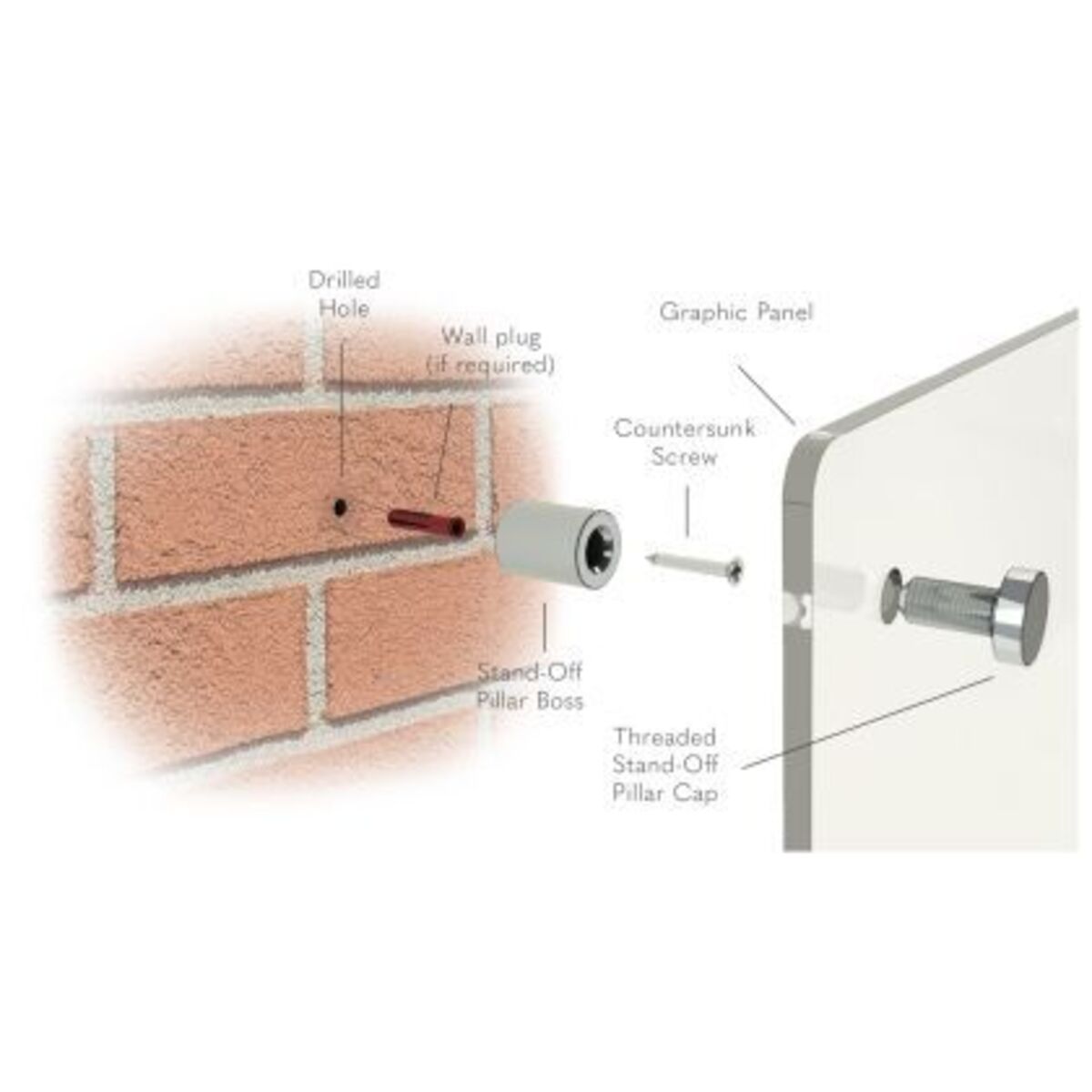

How It Works
You can download our PDF user instructions below. For any support needs, please don't hesitate to contact us.
User Instructions
